Block Properties

Block properties are an essential component in Logseq. The Slide Reveal plugin extensively utilizes this concept to customize slides. There are various supported properties, each with different target objectives and scopes. Let's classify and introduce them one by one.

Below, you can see that some properties have values, while others are of type Bool. If there's no value, it should be written as true, indicating the application of that property.

Set Theme

data-theme:: black

Supported themes:

• black
• moon
• white
• night
• league
• beige
• serif
• simple
• dracula
• sky
• blood
• solarized

We can set the theme in the plugin settings, but setting it with properties takes precedence. Additionally, these properties only apply to individual pages, and when flipping to the next page, the theme will revert to the theme set in the plugin settings. If the theme set in the plugin settings is inherit, indicating inheritance from the previous theme, it will maintain the theme set by the previous page's theme property.

Set Code Theme

data-code-theme:: github

There are several code themes in the plugin. You can set it by the property or use the default theme in the plugin settings.

Supported themes:

• atom-one-light
• atom-one-dark
• github
• github-dark
• xcode
• idea
• monokai
• nord
• stackoverflow-light
• stackoverflow-dark
• androidstudio
• base16-material
• base16-dracula
• hybrid
• docco
• far

Set Transition Effects

Transition effects refer to the animation effects when flipping pages. They are divided into controlling the main text and background of the page separately.

data-transition:: slide
data-background-transition:: slide

The optional values are as follows:

• none
• fade
• slide
• convex
• concave
• zoom

Lists

This differs from lists implemented based on Markdown, although visually similar.

Unordered List

- ## List
  data-list:: true
	- Topic 1
	- Topic 2
	- Topic 3
	- Topic 4

Ordered List

- ## Ordered List
  data-ordered-list:: true
	- Topic 1
	- Topic 2
	- Topic 3
	- Topic 4

Two-column Layout

- # Two Column List
  data-two-column:: true
	- Item 1
	- Item 2
	- Item 3
	- Item 4
	- Item 5
	- Item 6
	- Item 7
	- Item 8

This property can also be used in conjunction with other properties.

Set ID

The main purpose is to achieve link jump. Another use is to identify the same elements across different slides in animation effects.。

- ## Slide Link To
  data-id:: aa
	- I'am aa, let's go to cc
	- [Go to cc](#/cc)
- ## Slide Link Back
  data-id:: cc
	- I'am cc, let's go back to aa
	- [Go back to aa](#/aa)

Auto Animation

Animation is a rather complex concept, and here we'll only introduce the most commonly used type.

- ## Auto Animation
  data-auto-animate:: true
	- ## A
	- ## B
	  collapsed:: true
	- ## C
	  collapsed:: true
	- ## D
- ## Auto Animation
  data-auto-animate:: true
	- ## B
	- ## D
	- ## A
	- ## C

Some other properties can also be used in conjunction.

Attribute	Default	Description
data-auto-animate-easing	ease	A CSS easing function.
data-auto-animate-unmatched	true	Determines whether elements with no matching auto-animate target should fade in. Set to false to make them appear instantly.
data-auto-animate-duration	1.0	Animation duration in seconds.
data-auto-animate-delay	0	Animation delay in seconds (can only be set for specific elements, not at the slide level).
data-auto-animate-id	absent	An id tying auto-animate slides together.
data-auto-animate-restart	absent	Breaks apart two adjacent auto-animate slides (even with the same id).

More detailed information can be found in Reveal.js。

Vertical Slides

TIP

This is a feature for Pro users.

Vertical slides is a core feature in Reveal.js. It's also supported in slide reveal plugin.

- Slide 2, `Vertical Mode will not render this block`
  data-vertical:: true
	- Vertical 1
		- a
		- b
		- c
	- Vertical 2
		- d
		- e
		- f

You can combine with other horizontal slides to form a grid-style slide.

Background

There are types of background as follows.

Colorful Background

- # Colorful Background
  data-background-color:: aquamarine

Here, color names can be referenced from this document. If you're familiar with frontend technologies, you can also use other valid color formats, such as #fff, rgb(255, 255, 255), rgba(255, 255, 255, 0.5), etc.

Gradient Background

- # Gradient Background
  data-background-gradient:: linear-gradient(217deg, rgba(255,0,0,.8), rgba(255,0,0,0) 70.71%), linear-gradient(127deg, rgba(0,255,0,.8), rgba(0,255,0,0) 70.71%), linear-gradient(336deg, rgba(0,0,255,.8), rgba(0,0,255,0) 70.71%)

The gradient rules here can be referenced from this document and this document.

Image Background

- # Image Background
  data-background-image:: https://source.unsplash.com/random?1
  data-background-opacity:: 0.5

Attribute	Default	Description
data-background-image		URL of the image to show. GIFs restart when the slide opens.
data-background-size	cover	See background-size on MDN.
data-background-position	center	See background-position on MDN.
data-background-repeat	no-repeat	See background-repeat on MDN.
data-background-opacity	1	Opacity of the background image on a 0-1 scale. 0 is transparent and 1 is fully opaque.

Half background

- ## Half background to right
  data-list:: true
  data-half-background-to:: right
  data-half-background-image:: https://source.unsplash.com/random?2
	- ### I'm on the left
	- ### I'm on the left
	  collapsed:: true
	- ### I'm on the left

It also supports images on the left and text on the right.

Video Background

- # Remote Video Background
  data-background-video:: `https://static.slid.es/site/homepage/v1/homepage-video-editor.mp4`
  data-background-video-loop:: true
  data-background-video-muted:: true
  data-background-opacity:: 0.5

Attribute	Default	Description
data-background-video		A single video source, or a comma separated list of video sources.
data-background-video-loop	false	Flags if the video should play repeatedly.
data-background-video-muted	false	Flags if the audio should be muted.
data-background-size	cover	Use cover for full screen and some cropping or contain for letterboxing.
data-background-opacity	1	Opacity of the background video on a 0-1 scale. 0 is transparent and 1 is fully opaque.

Iframe Background

- # Youtube Background
  data-background-iframe:: https://www.youtube.com/embed/anmuklFtu8U?si=j9wRINS3buG3ZN2n
  data-background-interactive:: true
  data-preload:: true
  data-background-opacity:: 0.5

Attribute	Default	Description
data-background-iframe		URL of the iframe to load
data-background-interactive	false	Include this attribute to make it possible to interact with the iframe contents. Enabling this will prevent interaction with the slide content.

Style Control

Based on CSS

Here, familiarity with CSS style syntax is required. Several properties are supported, each with different effects and scopes:

• data-style: Applies only to the current block.
• data-child-style: Applies to all immediate child blocks of the current block.
• data-section-style: Applies to the outermost tag of the current slide.
• data-list-style: Applies to list tags, used in conjunction with data-list.

Based on Tailwind CSS

The plugin has built-in a vast array of Tailwind CSS styles, so it supports setting CSS class names.

• data-class: Applies only to the current block.
• data-child-class: Applies to all immediate child blocks of the current block.
• data-section-class: Applies to the outermost tag of the current slide.
• data-list-class: Applies to list tags, used in conjunction with data-list.

It's important to note that all Tailwind CSS class names start with ! to increase the specificity of the styles.

Common header and footer

data-header:: true

或

data-footer:: true

Blocks identified as common headers and footers will not be treated as content for the current slide but will appear on every slide. To meet specific requirements, they need to be combined with other properties for positioning and styling.

For example:

- Slide Reveal Demo
  data-header:: true
  data-class:: !absolute !top-0 !left-0 !text-left !p-8 !font-bold  !text-2xl !bg-gradient-to-r !from-rose-400 !via-fuchsia-500 !to-indigo-500 !text-transparent  !bg-clip-text !w-auto
- Name@Company
  data-footer:: true
  data-class:: !absolute !bottom-8 !text-center !p-2 !w-full !text-xl !text-gray-500
- # Slide 1

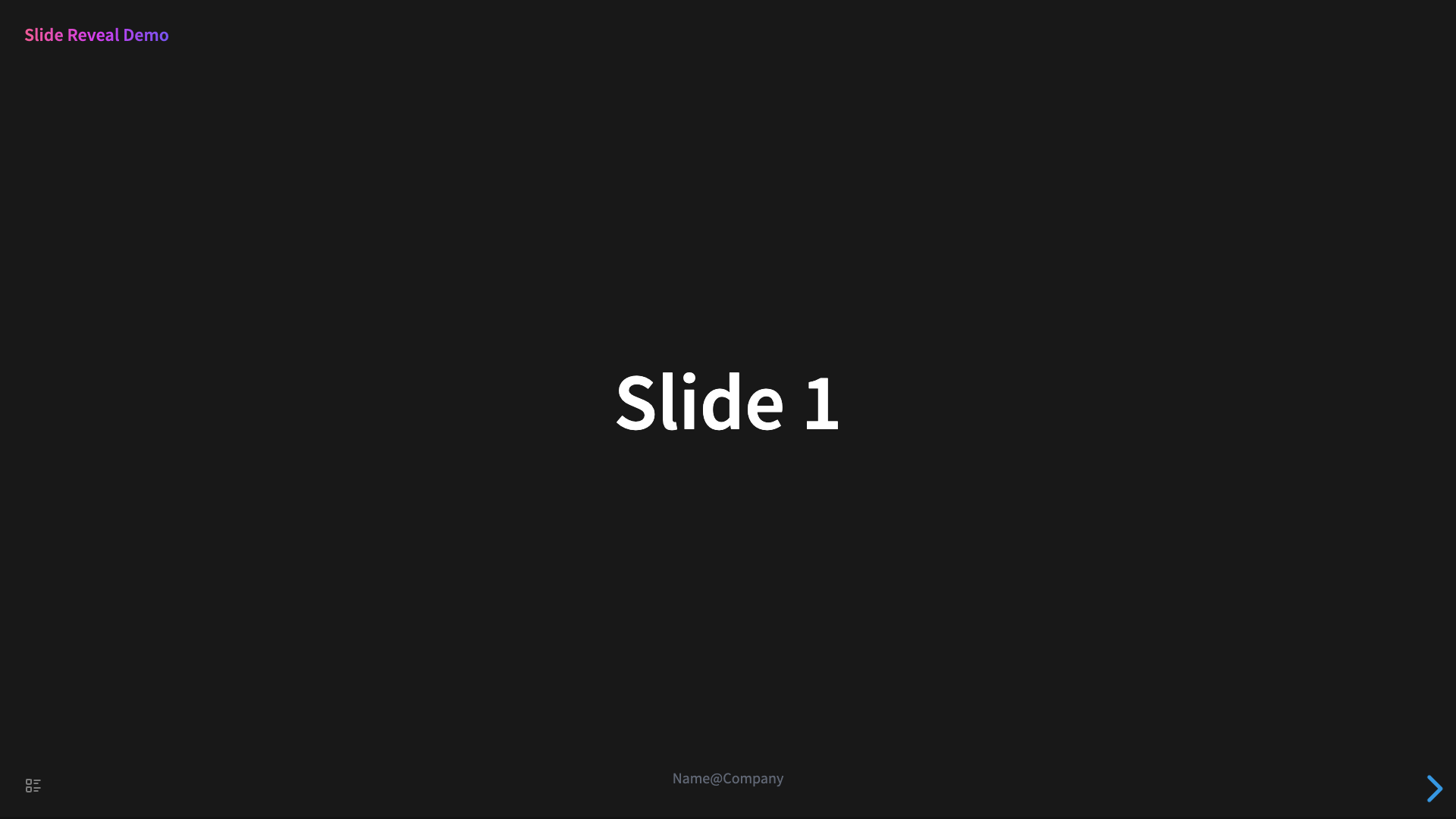

It will look like this:

Fragments

To enable one slide to be divided into multiple fragments, each fragment being displayed sequentially, you can achieve variations through attribute settings.

• data-fragment: Sets the fragment effect for the current block.
• data-child-fragment: Sets the fragment effect for all immediate child blocks of the current block.
• data-fragment-index: Sets the fragment index for the current block.

Fragment effects can include the following options:

Name	Effect
fade-out	Start visible, fade out
fade-up	Slide up while fading in
fade-down	Slide down while fading in
fade-left	Slide left while fading in
fade-right	Slide right while fading in
fade-in-then-out	Fades in, then out on the next step
current-visible	Fades in, then out on the next step
fade-in-then-semi-out	Fades in, then to 50% on the next step
grow	Scale up
semi-fade-out	Fade out to 50%
shrink	Scale down
strike	Strike through
highlight-red	Turn text red
highlight-green	Turn text green
highlight-blue	Turn text blue
highlight-current-red	Turn text red, then back to original on next step
highlight-current-green	Turn text green, then back to original on next step
highlight-current-blue	Turn text blue, then back to original on next step

Layout

You can set default layout on plugin settings. But you also can set data-layout property for specific slide.

Support 9 layouts:

• center
• left
• right
• top
• bottom
• top-left
• top-right
• bottom-left
• bottom-right

Hide slide

data-visibility:: hidden

It will not be rendered if this attribute is marked

Magic page level properties

Most of the properties can be set on page level by adding page- prefix to the property name, e.g. data-page-layout:: left. You can use this way to give each slide common properties.

Some properties are not supported on page level or meaningless.

• data-header
• data-footer
• data-id
• data-fragment-index
